CID Heads - Competition Induction Designs

CID SB Ford 5.0 4500 EFI Semi Finished Flange BA Intake Manifold to suit a 9.5" deck block.

CID SB Ford 5.0 4500 EFI Semi Finished Flange BA Intake Manifold to suit a 9.5" deck block.

Regular price $1,195.00
Regular price $1,295.00 Sale price $1,195.00
Sale Sold out

*Product Options Required*

Currency Converter

PRODUCT DESCRIPTION

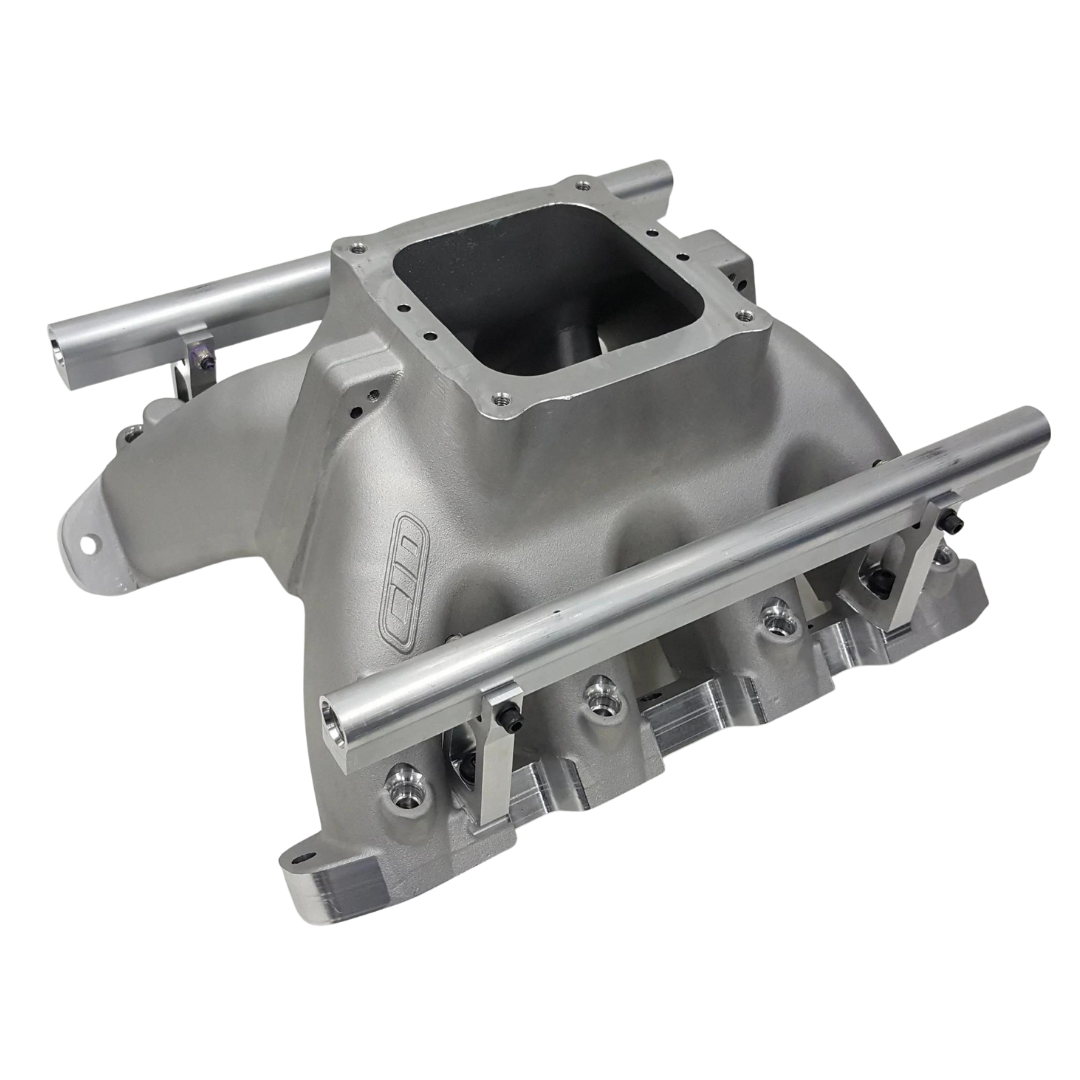

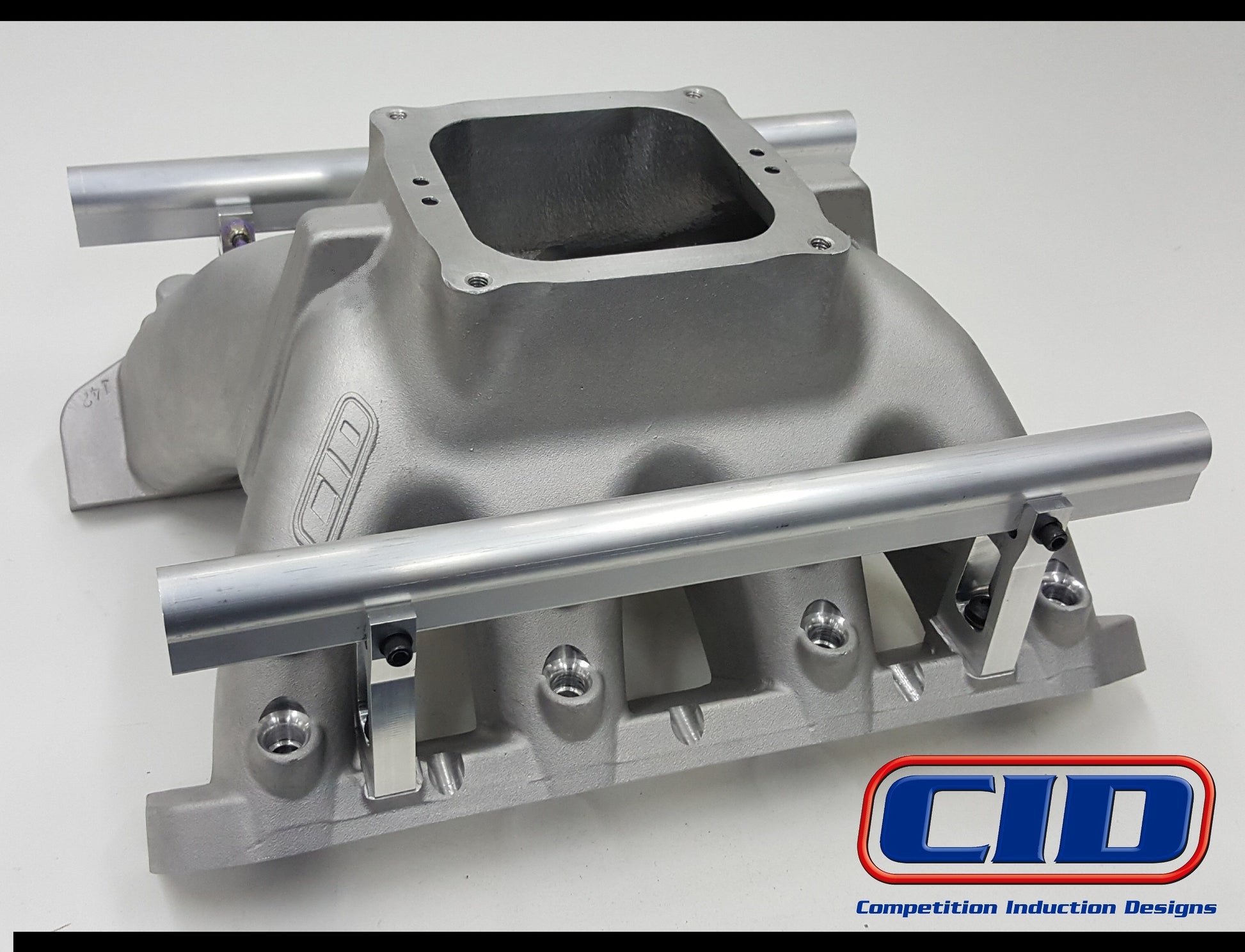

CID Heads SB Ford 5.0 4500 EFI Semi Finished Flange BA Intake Manifold 9.5" Deck

The CID Heads 5.0 BA intake manifold is designed for engine applications aiming to make 850+HP using a cast single plane intake. The CID Heads SB Ford BA  intake manifold has an overall height of 9.75" and unmatched HP producing characteristics amongst all Ford cast single plane manifolds. It features a square carb pad designed to suit a 4500 Dominator carburetor or throttle body and comes set up for EFI with fuel rails and CNC billet fuel rail mounting brackets

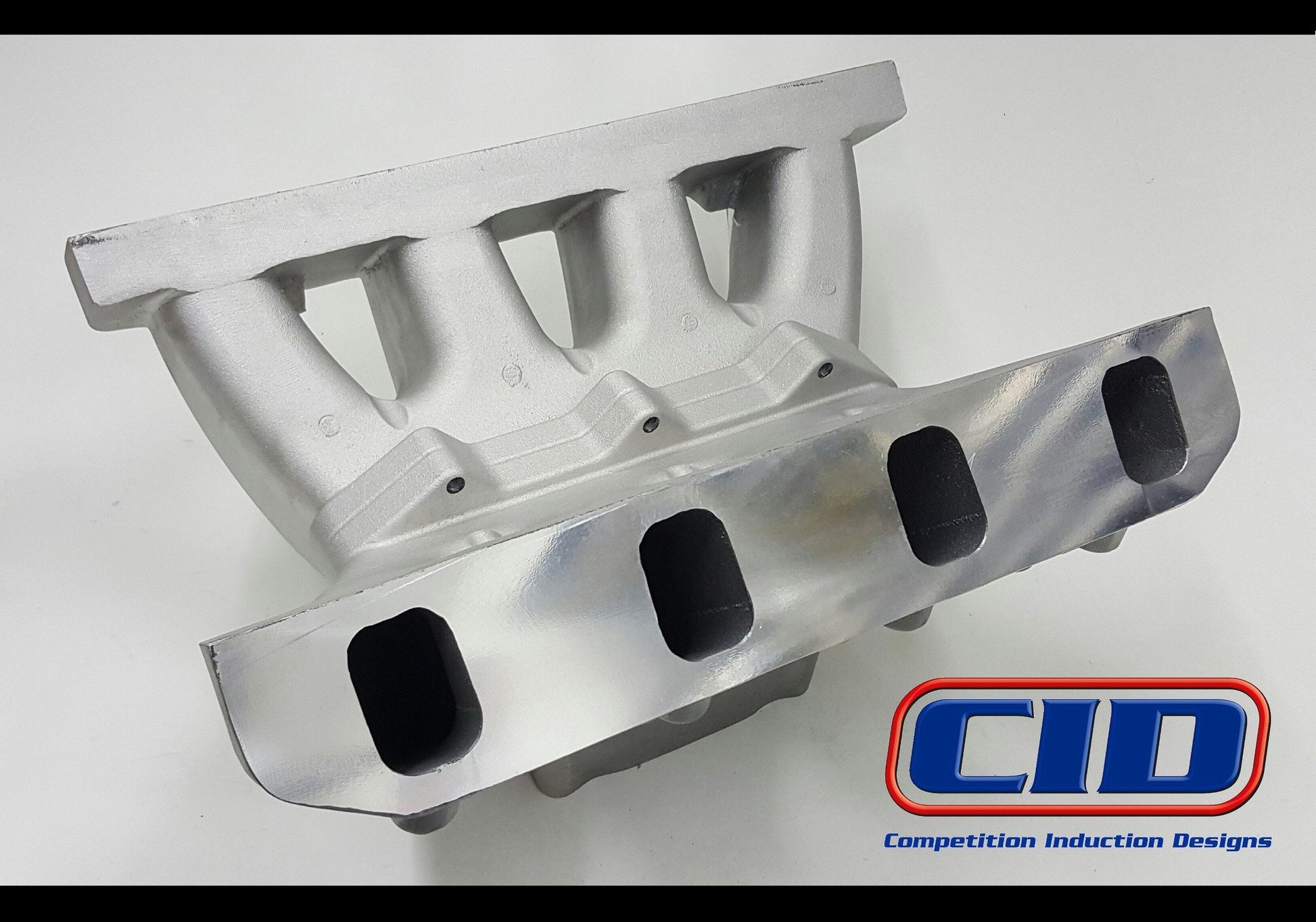

This version comes with semi finished flanges so it can be adapted to various SB Ford heads.

Product Features

  • The SC1 4500 BA  intake is designed for engines making 850+HP street, race and marine applications.
  • Near equal length runners that are 5" in area at the plenum opening with enough material to increase area to 6.0+" at plenum
  • Semi Finished flange without bolt holes to suit various SB Ford heads.
  • EFI version comes with - 12 fuel rails and mounting hardware.
  • STD injector location is the lower cast bungs while CNC fuel rail brackets are in stock. Upper fuel injector location can be selected as an option.
  • Intake manifold designed to fit 9.5" deck blocks
  • Designed and manufactured in the USA
  • Made to order and a "Final Sale"

Specifications

  • 9.5" Deck Height
  • 4500 Carb bolt pattern
  • 5.0" of area at the plenum and of the runner
  • EFI comes with - 12 fuel rails and CNC mounting hardware.
  • 9.75" tall. Can be milled down to 9.25"

What's In The Box:

One CID Heads SB Ford BA Semi Finished Intake Flange 4500 EFI 9.5" Deck Intake Manifold.

*All photos are for illustration purposes only*
