CID SB Ford D3 5.0 4150 Carb BA Intake Manifold suit 9.5" deck block.

CID SB Ford D3 5.0 4150 Carb BA Intake Manifold suit 9.5" deck block.

Regular price $895.00
Regular price $995.00 Sale price $895.00
Sale Sold out

*Product Options Required*

Currency Converter

PRODUCT DESCRIPTION

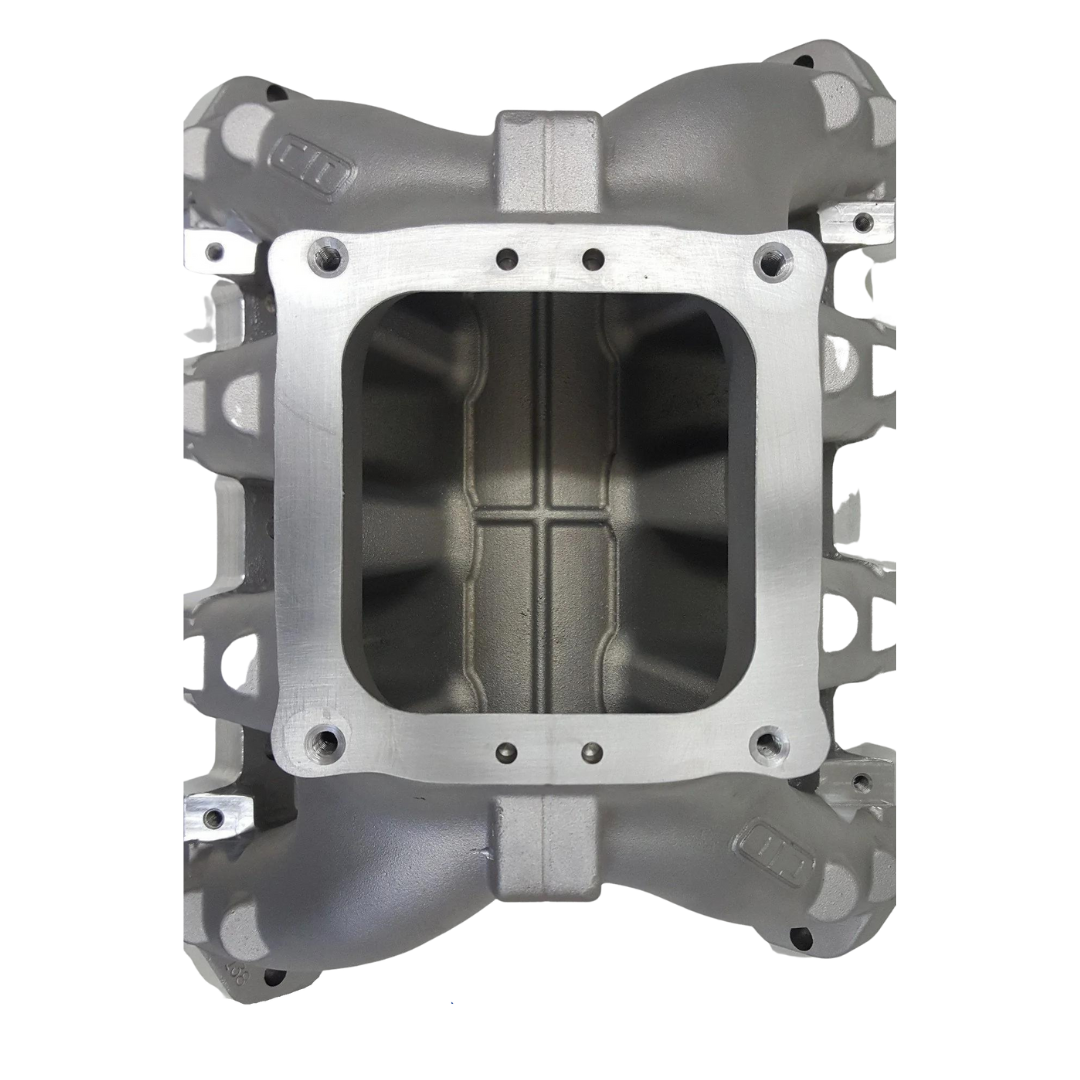

CID Heads SB Ford D3 5.0 4150 BA Intake Manifold 9.5" Deck

The CID Heads 5.0 D3 BA intake manifold is designed for engine applications aiming to make 850+HP using D3 cylinder heads with a cast single plane intake. The CID Heads BA D3 intake manifold has an overall height of 9.75" and unmatched HP producing characteristics amongst all Ford cast single plane manifolds.

This version features the same 4500 square carb pad opening as the 4500 version, with 4150 Holley carburetor bolt spacing, and is designed for classes that must retain 4150 bolt spacing.

Product Features

  • The BA 5.0 D3 4150 intake is designed for engines making 850+HP in street, race and marine applications.

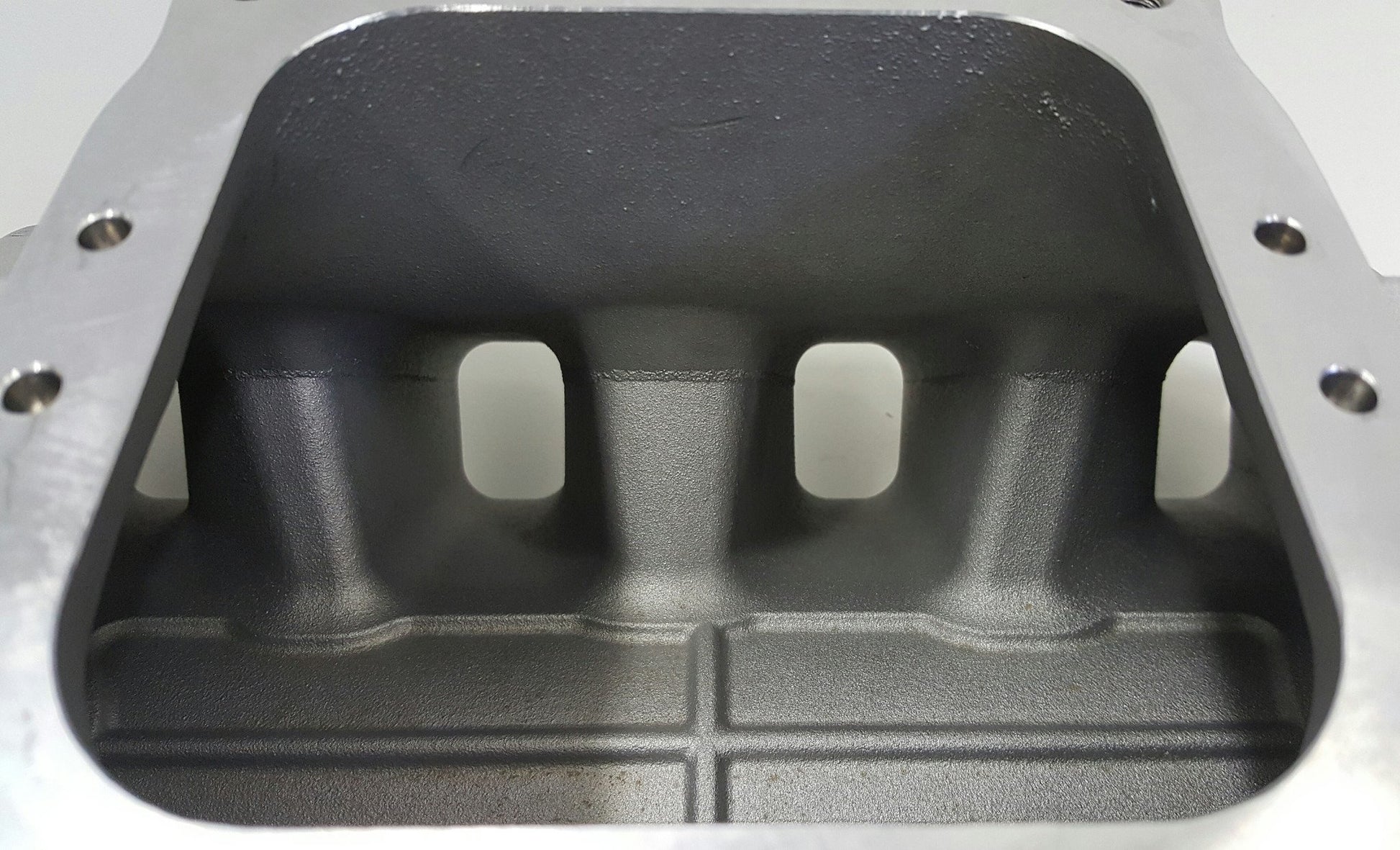

  • Near equal length runners that are 5" in area at the plenum opening with enough material to increase area to 6.0+" at plenum

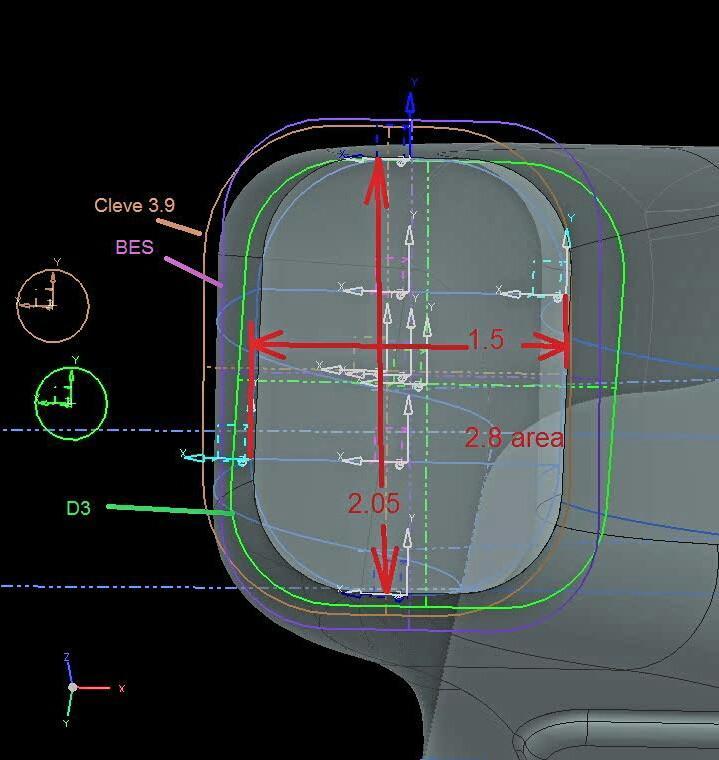

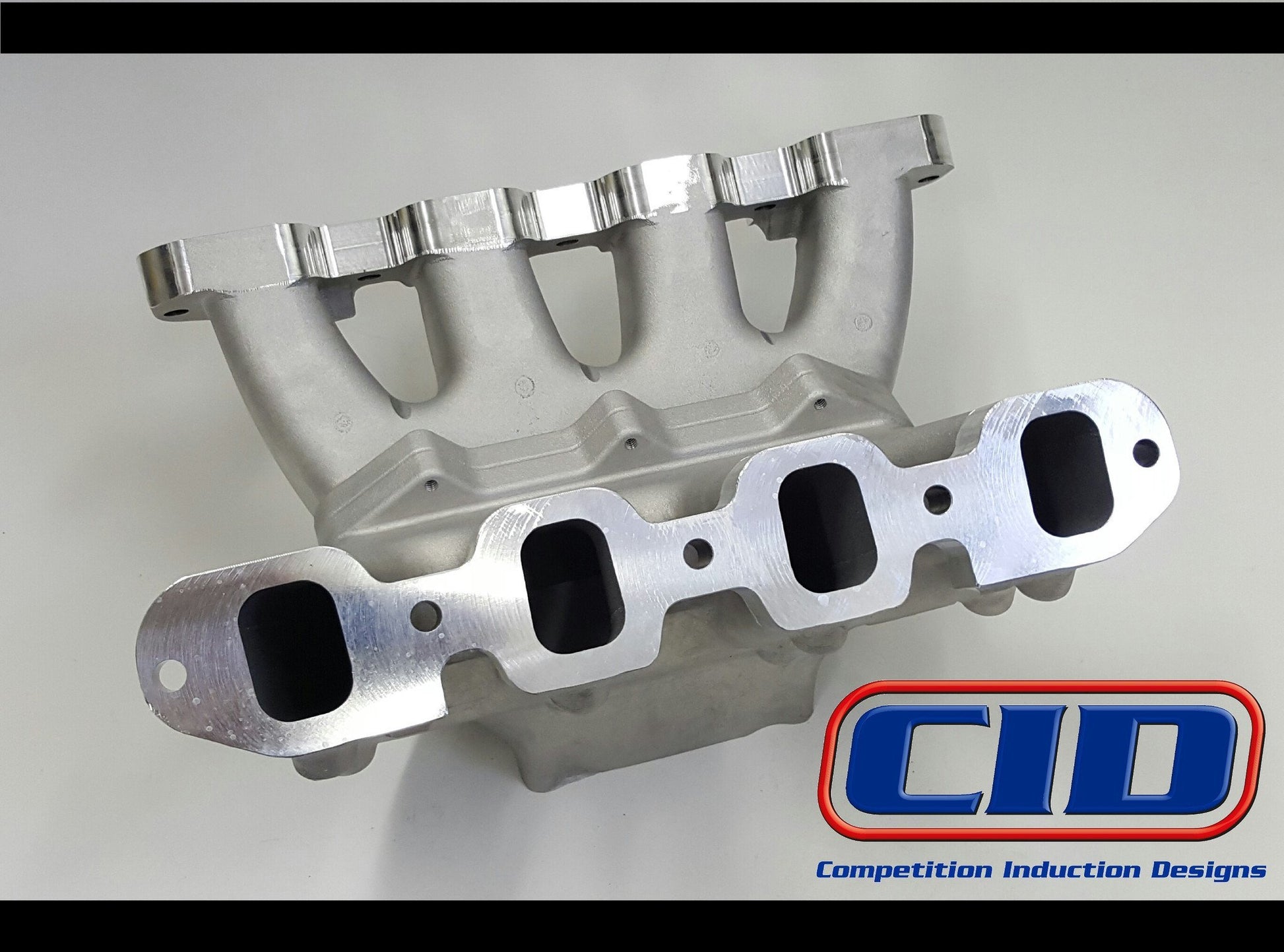

  • Designed to fit D3 port openings with port matching.
  • Intake manifold designed to fit 9.5" deck blocks
  • Designed and manufactured in the USA
  • Made to order and a "Final Sale"

Specifications

  • 9.5" Deck Height
  • 4150 Carb Bolt Pattern - 4500 Opening
  • 5.0" of area at the plenum and of the runner
  • 9.75" tall. Can be milled down to 9.25"

What's In The Box:

One CID Heads BA 5.0 D3 4150 Intake Manifold to suit a 9.5" deck block.
