CID Heads - Competition Induction Designs

CID LS7 12D PA (Power Adder) BE Cylinder Heads 400 + CFM - 3.3" MCSA - Suit 4.125" Bore - Std Exhaust Height - 60CC Chamber (Per PAIR)

CID LS7 12D PA (Power Adder) BE Cylinder Heads 400 + CFM - 3.3" MCSA - Suit 4.125" Bore - Std Exhaust Height - 60CC Chamber (Per PAIR)

Regular price $3,500.00
Regular price Sale price $3,500.00
Sale Sold out
Select Currency

CID LS7 3.3" MCSA 12D PA (Power Adder) BE Cylinder Heads suit 4.125" Bore - 60CC Chambers

LS7 Inline 420 CFM Cylinder Heads

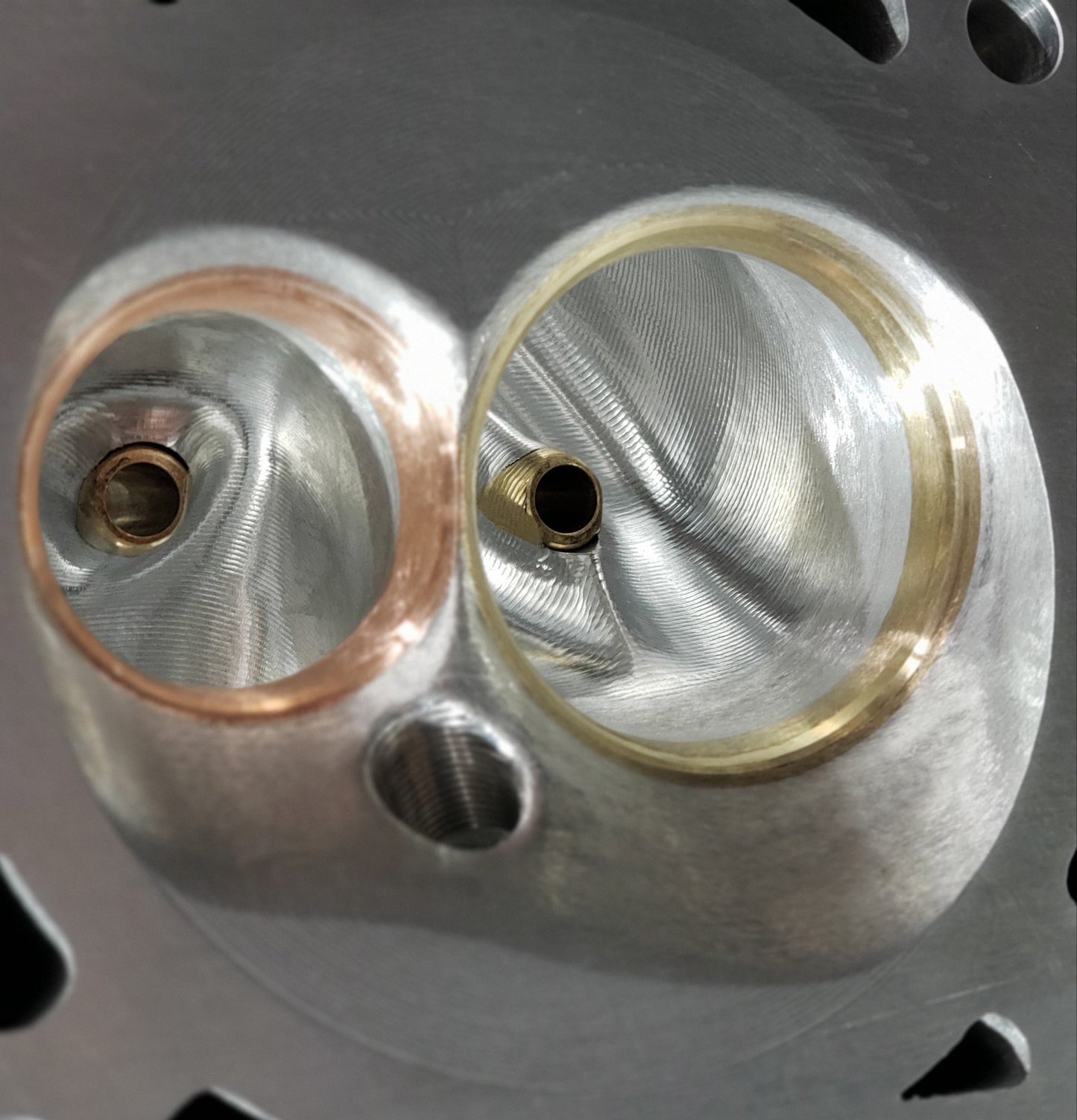

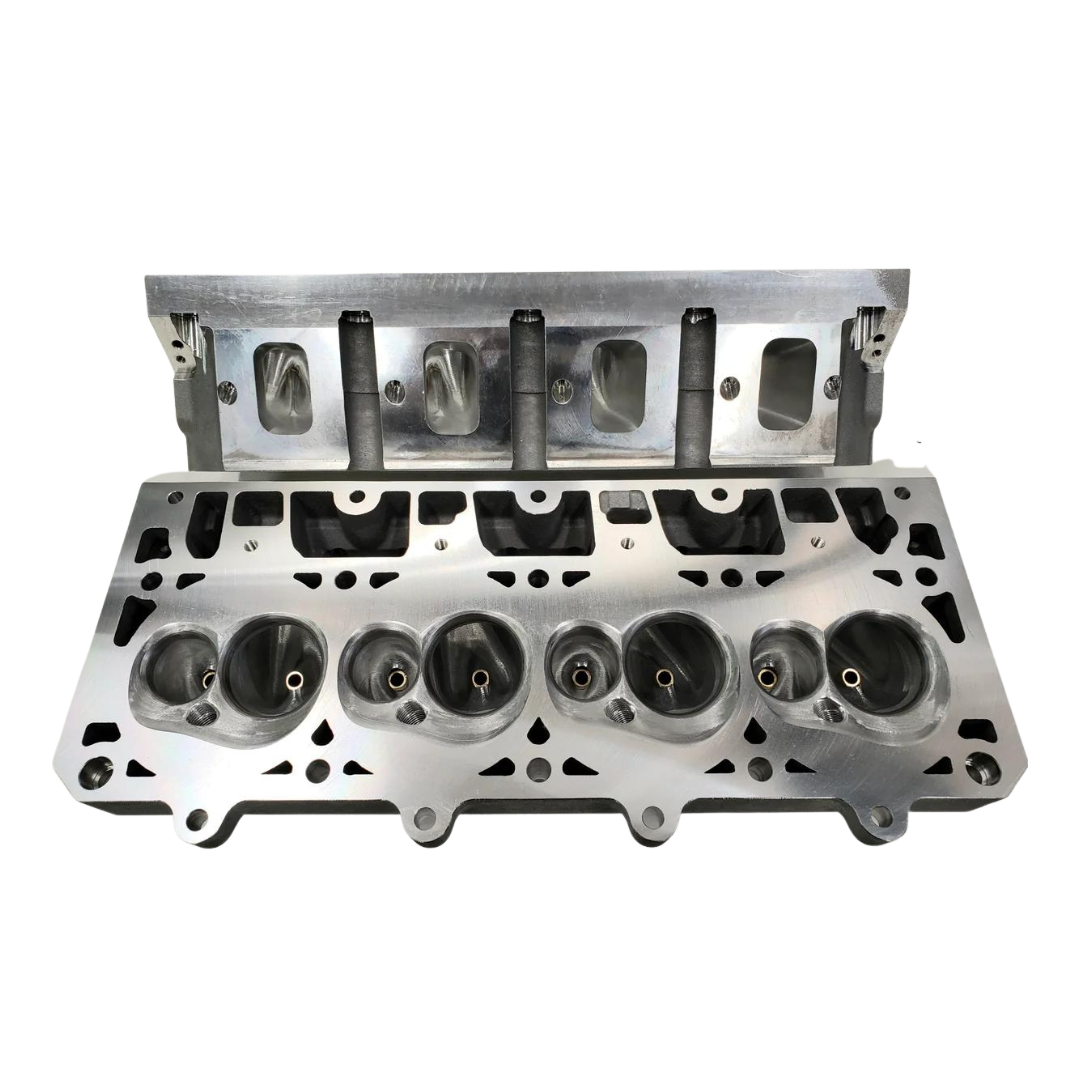

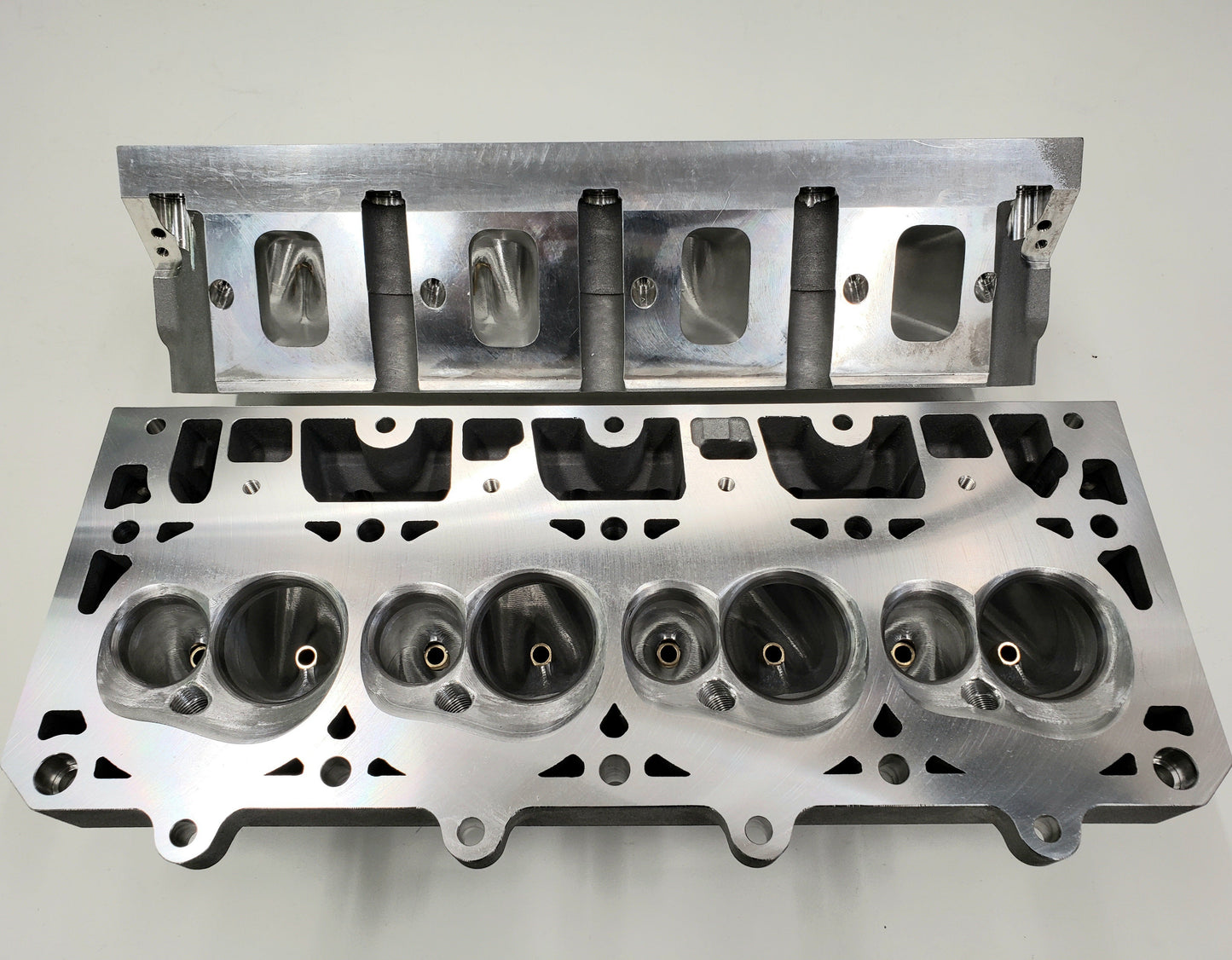

One pair of Bare 12 Degree Inline LS7 12D 3.3" MCSA Port BE cylinder heads CNC ported and valve jobbed with CHE valve guides and CHE Ductile Iron valve seats. Standard height exhaust port fits all existing headers.

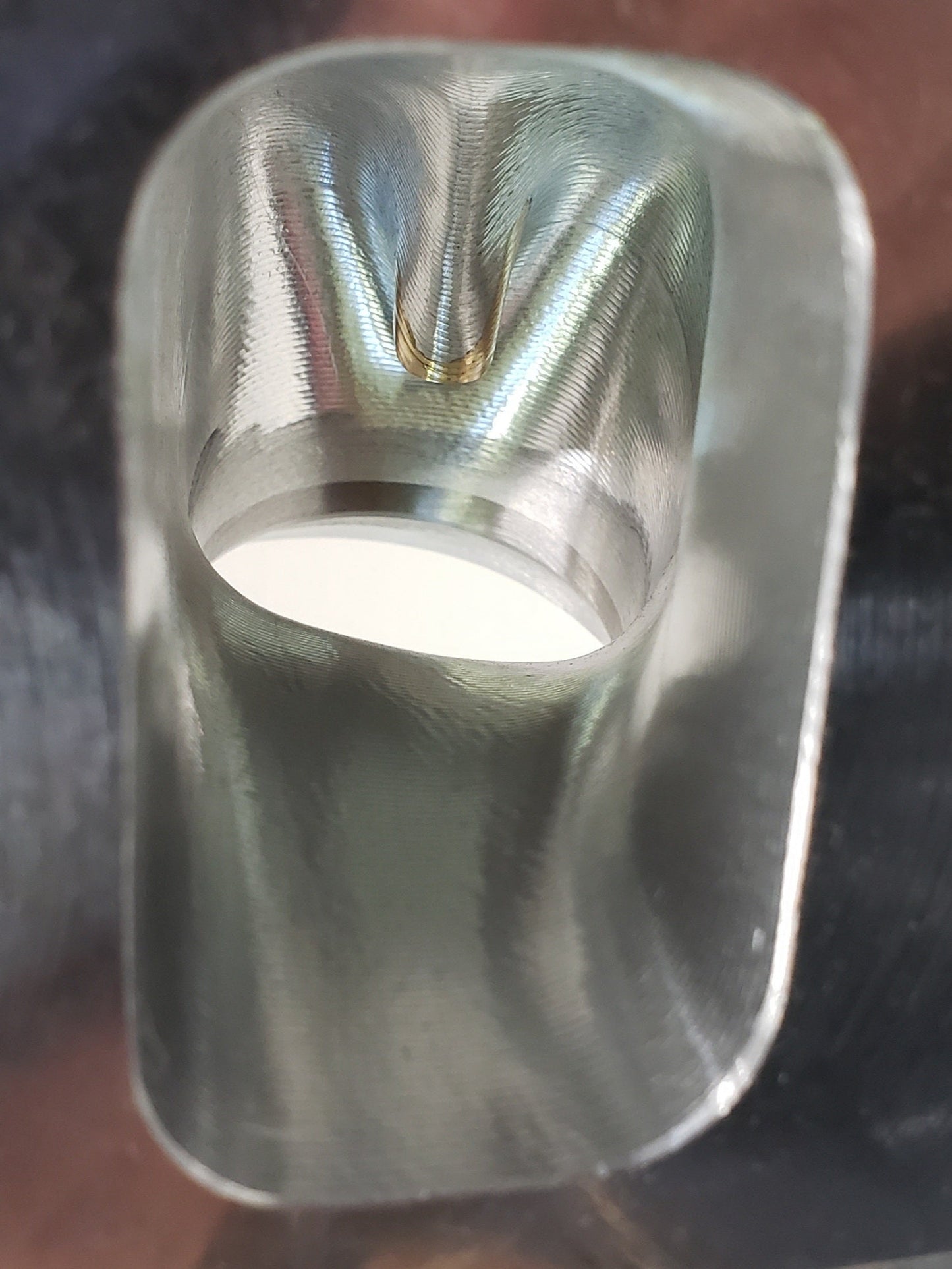

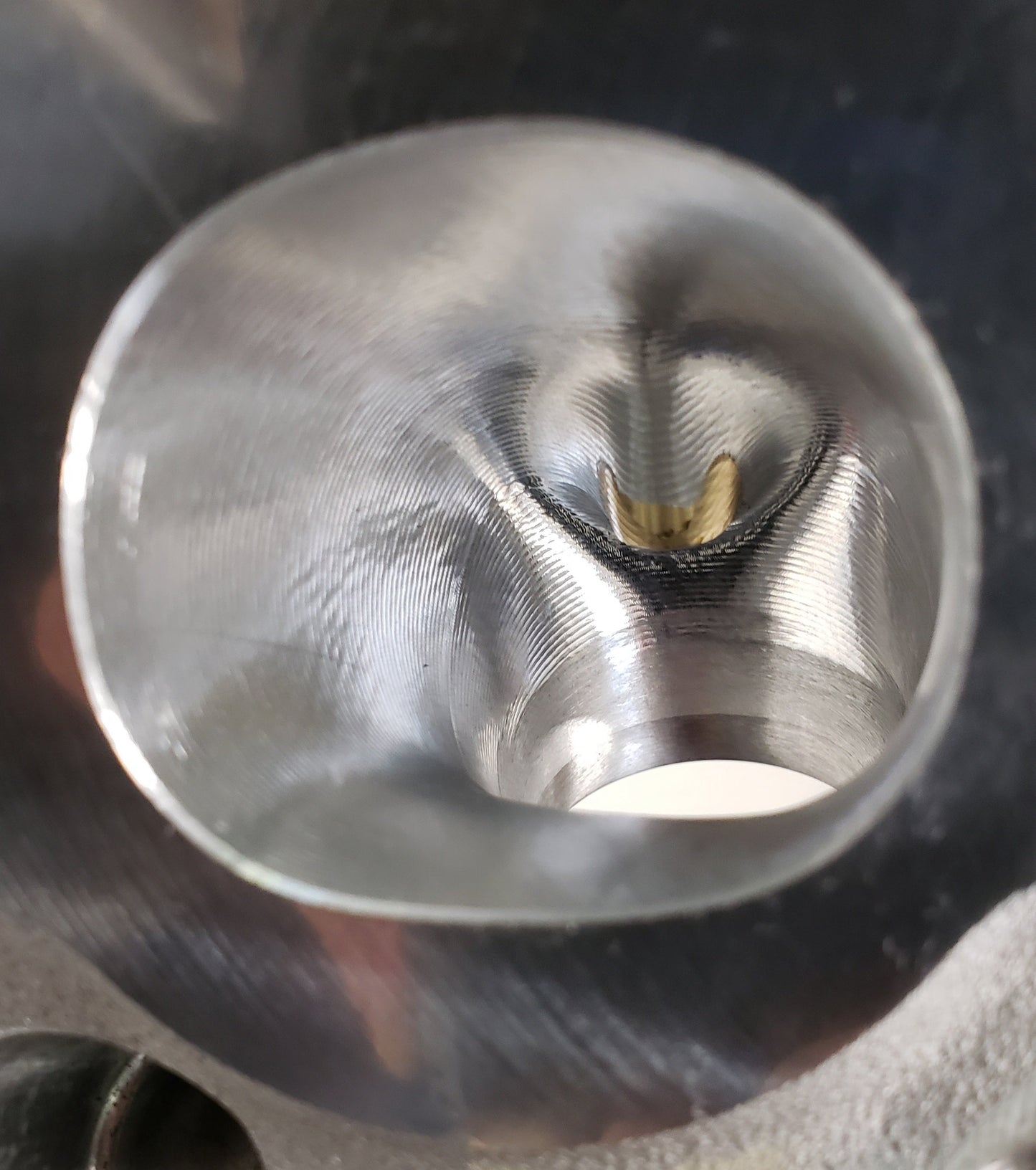

Developed by Greg Good the LS7 3.3" Intake port is the smallest LS port we offer on the shaft mount castings. They flow 400+CFM, with almost 300CFM at just .400" lift with a 2.180" valve. The heads share the same optimized valve locations as our record setting LS 12D Oval Port  BA Cylinder Heads with 2.180" Intake valves and 1.625" Exhaust Valve flowing over 280 CFM.

Standard valve stem size is 5/16" with valve lengths of 5.8" . A 1.600" diameter valve spring pad can accommodate a 2.1" installed height

They feature a Power Adder friendly 60cc chamber. Available with CHE Ductile Iron Valve Seats or CHE Bronze Valve Seats.

Heads require aftermarket shaft mount rockers available from either Crower (Cast Stainless P/N 74435F - Billet Steel P/N 74435B) or T&D Machine (Billet Steel P/N 2482) and will likely require aftermarket pistons, or modification to existing pistons. Aftermarket Pistons are available from Diamond, Ross and others.

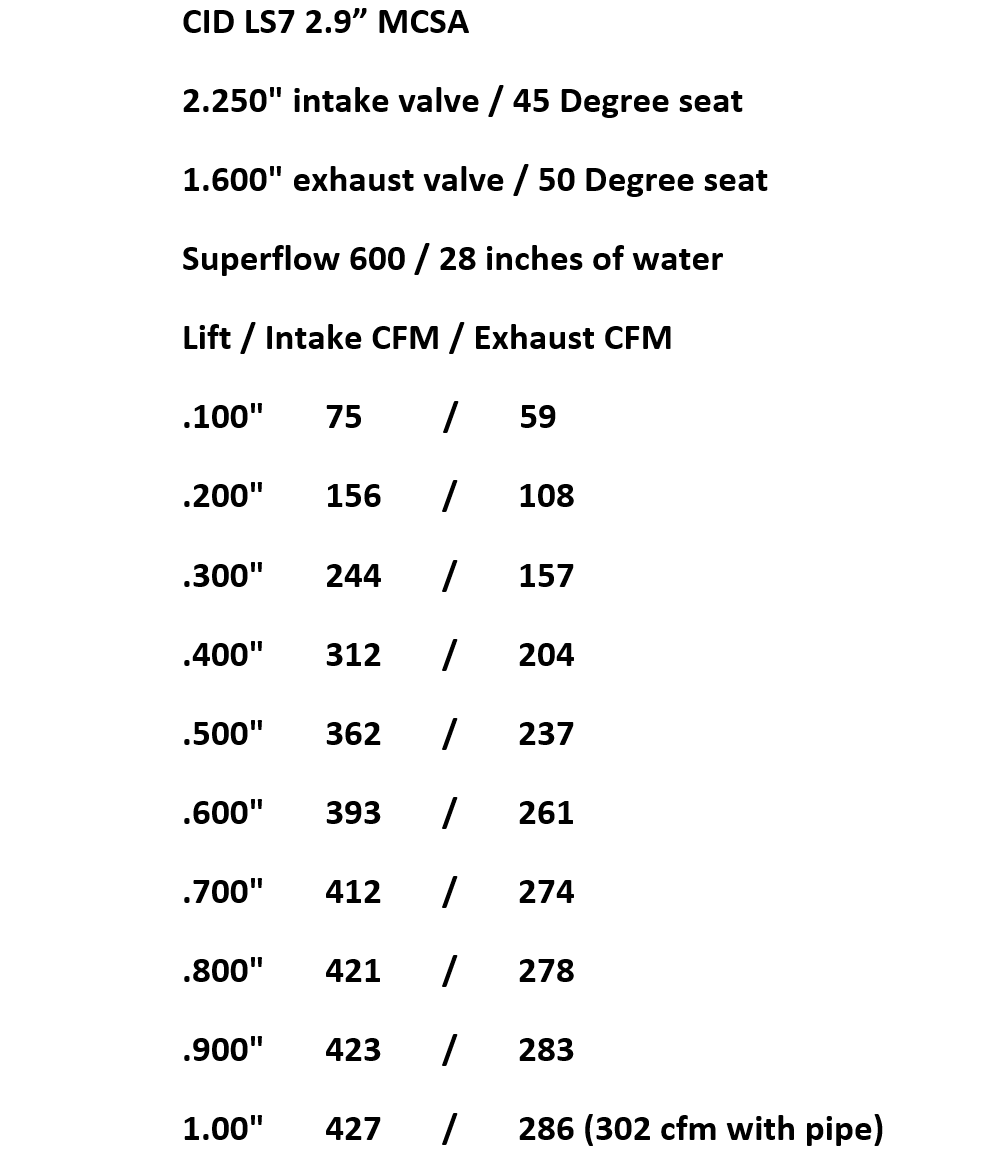

The LS7 2.9" version have the best atomization possible for a port of this size

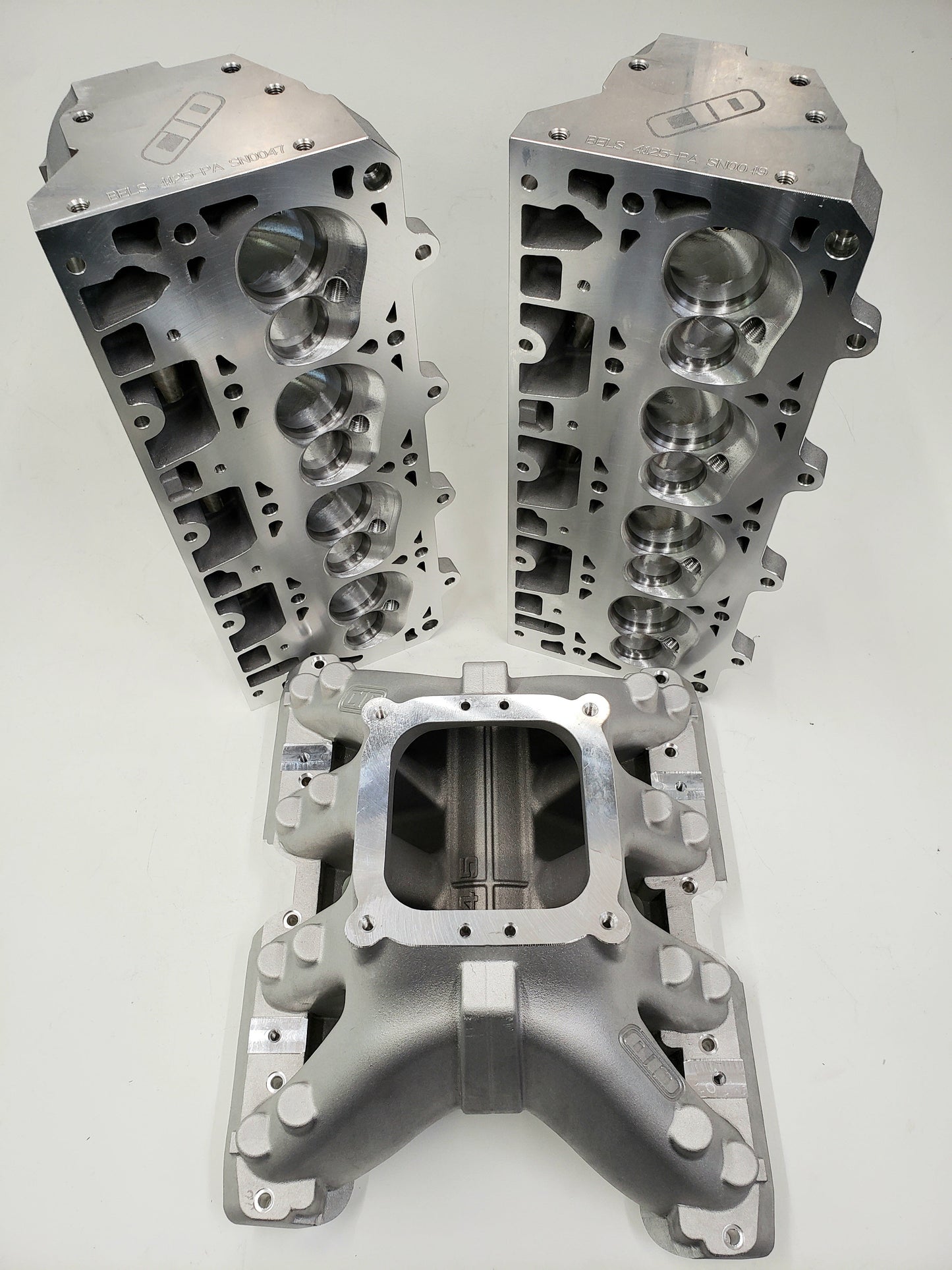

They are a perfect match for our 4.5 and 5.0 BA LS intakes allowing complete customization for your intended HP requirements."
